3/4 HP Convertible Jet Pump with Multi-function Diagnostic Capabilities
WPD07502K
Lead-Free
|
3/4 |
20 |
Cast Iron |
3 YEAR WARRANTY

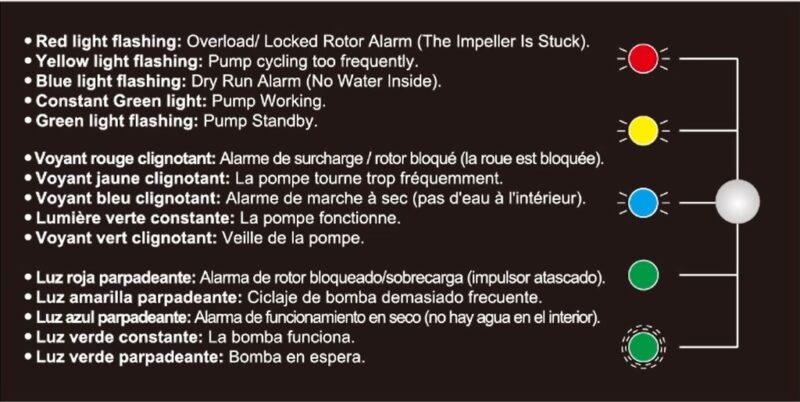

- LED Diagnostics Panel indicates operation status
- Rugged cast iron construction
- Dual voltage motor, with built-in 115/230V automatic conversion switch
- Shallow well application for water at depths up to 25’ deep
- Deep Well application for water at depths up to 90’ deep
- Self-priming after pump housing is initially filled
- Certified Lead-Free to NSF/ANSI/CAN 61, and NSF/ANSI 372
- Ejector kits and pressure regulator included
- 30/50 pressure switch
- 3 Year Warranty
Performance
| wdt_ID | Depth to Water | 0' | 10' | 20' | 30' | 40' | 50' | 60' | 70' | 80' | 90' | Max. Pressure Shutoff |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | GPM | 20 | 16 | 12 | 7 | 6 | 5 | 4 | 3 | 3 | 2 | 70 PSI |
| 3 | GPH | 1200 | 978 | 726 | 402 | 378 | 306 | 240 | 180 | 150 | 108 | 70 PSI |
